PRODUCT DESCRIPTION :

• The ride height is 4-wheel independent.
• With this system, it's able to adjust the ride height of the four suspensions individually. Each air bag has its own pressure value which enables to advance the performance of handling.
• This is a complete kit with the most excellent damping setting to match up properties of pneumatic springs in order to increase the vehicle’s stability, unlike other brands come with non adjustable shock absorbers which cause the vehicle to be bouncy and unstable during cornering. Besides, modifying upper mounts, cutting car body or welding the OEM shock to the vehicle are not required when installing our products.
• Not only is this system allowed to change air pressure, but you can also adjust the maximum and minimum ride height freely to match up a body kit to get the desired ride height, which is one of our products features that other brands do not have.
• This system is designed for easy bolt-on so it is not required to work with the O.E.M shock absorbers.
• This system has 36 levels of adjustable damping, ride height adjustable, including upper mount in the fronts and rears. The standard setting of McPherson strut is rubber top mounts, but you can choose to change the Pillowball top mount to have ability for adjusting the camber degree.
• The top mounts that we have on air suspension will be based on our standard setting.
• APP Bluetooth Receiver is available.
• It is dedicated for iOS system.

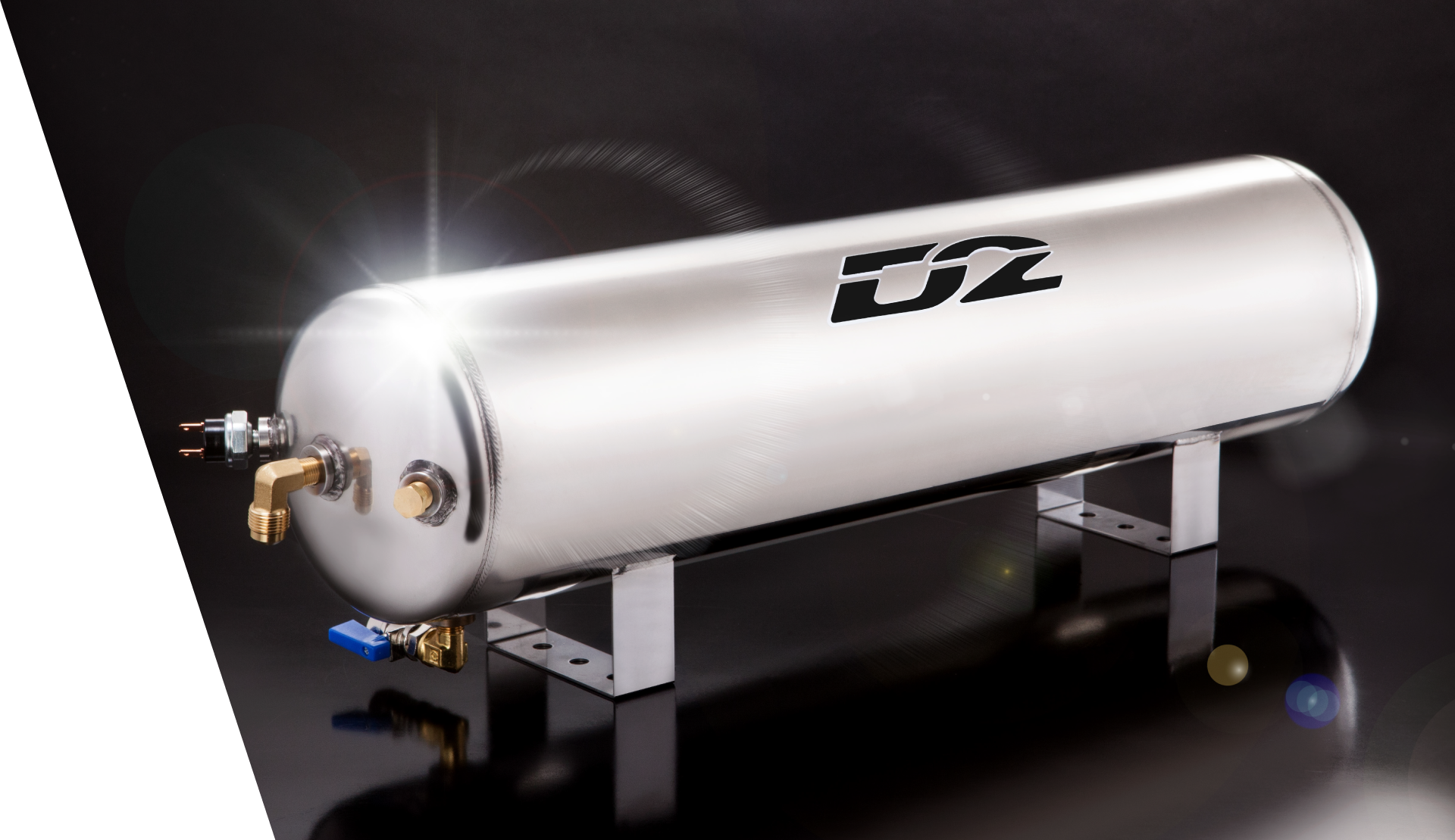

• Also, a tire pressure gauge can be connected to the air tank to fill your tires; the air pressure in the tank is sufficient for the tire pressure gauge.
• A pneumatic tool can be connected to the air tank as well to clean the exterior of your vehicle, the air pressure in the air tank is sufficient for the pneumatic tool.
• You can adjust the ride height with such ease while in the car. The ride height can be adjusted all the time to reach your desired height depending on the load of your vehicle.
• The adjustment range of ride height is between 100-150mm. (based on different applications)
• The speed of lowering and raising vehicle ride height is 2-5 seconds only.
• This kit comes with 8 x solenoid valves and 2 x remote control which allow you to adjust the ride height while in or out of the car.
• AFH wireless memory remote control can display the air tank and 4 front/rear pressure values of air bags. It will automatically modify the value while driving.
• There is no complex wire setting; Fast installation within 2 hours.

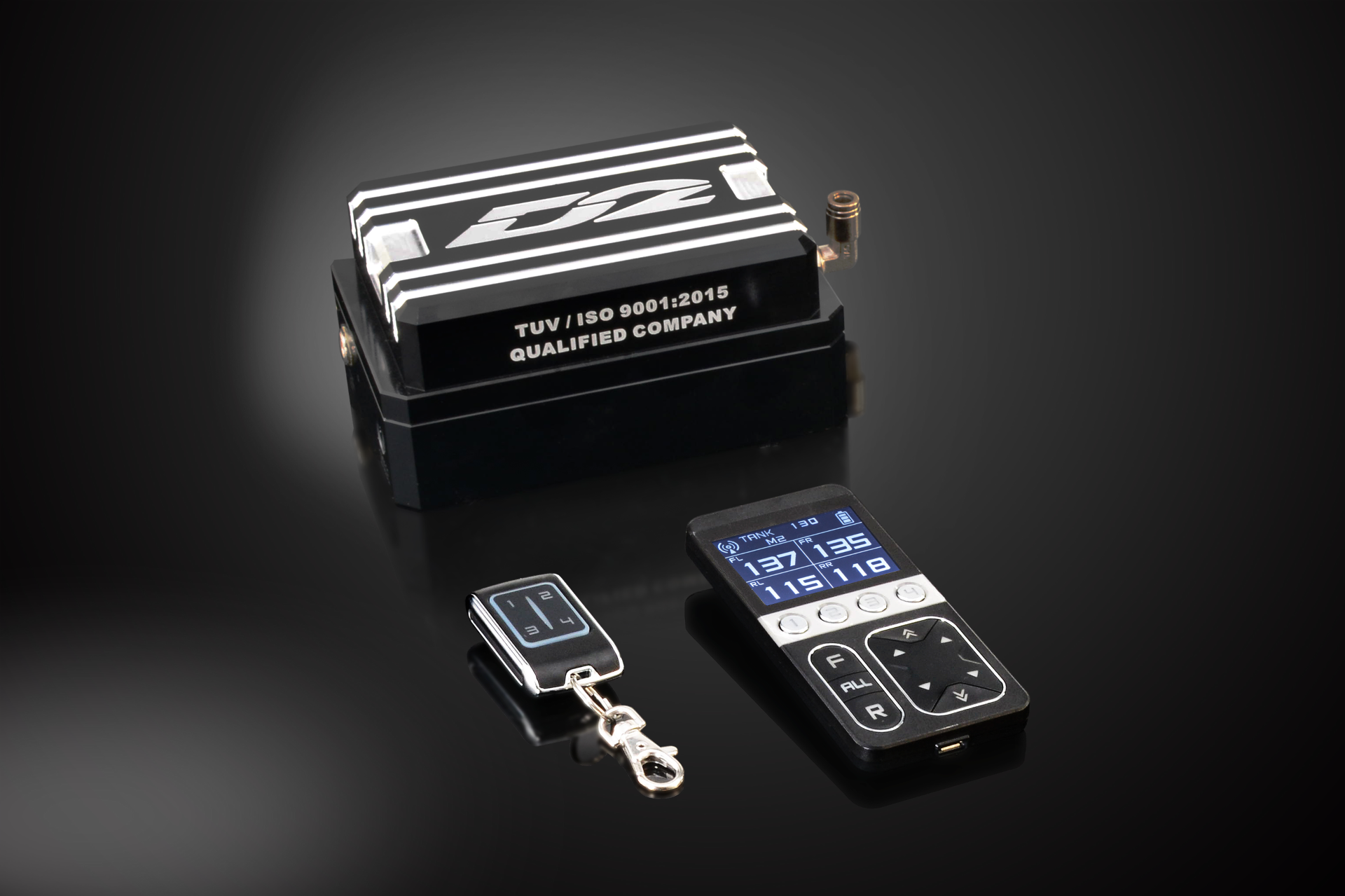

• This kit comes with two remote controls, one is with AFH wireless memory remote control and the other is with simple version. The remote control is available for 4 ride height memories.
• The additional function for this system is to display, show-off or hookup.

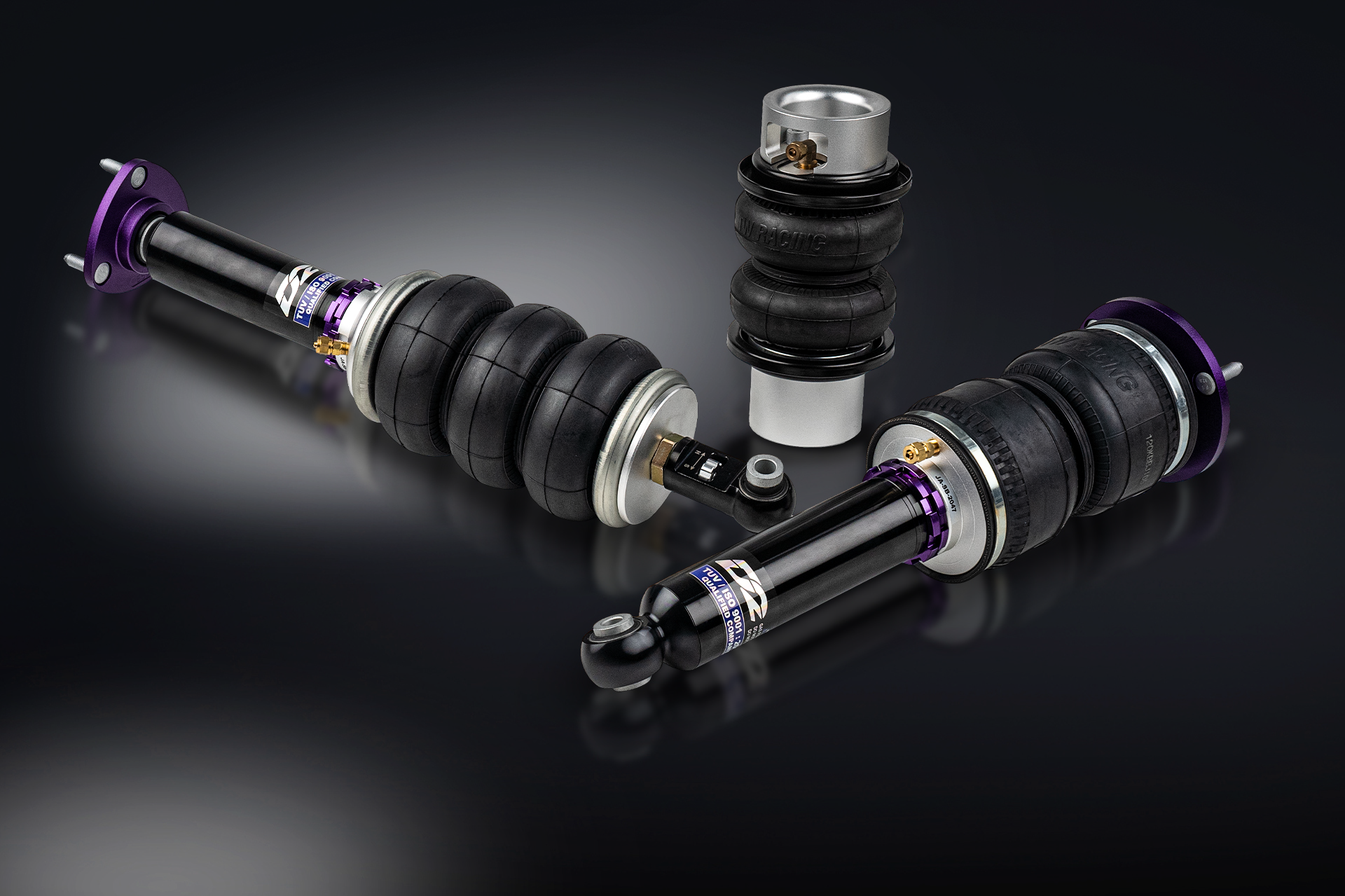

• The high performance shock absorbers supplied with this kit has 36 levels of adjustable damping, and the damping is set up specifically for better handling.
• Available for 4 ride height memories.
• No need to install pressure gauge and switch and can protect the car interior design.
• Warning signal for deficient tank pressure on remote control.
• Memory for engine start and automatically orient ride height on remote control.
• Wire setting easy for installation.
• One touch function. Simply by one press, you can adjust to your ride height. (In previous version, you need to press the buttons for a long time and will cause bad connection.)
• Power save device (sleeping mode)
• Battery change unnecessary (charged by USB).
• Function setting for speeding and exhausting.
• After installation, the technician should be examined certainly. Air springs will change its physical configuration due to different air pressure; therefore, check if all components of suspension have contact with the air springs when they are fully inflated. If so, it’s necessary to remove the parts or the air springs might be damaged. Components rubbing against the air spring will void the warranty.
• All applications listed on our website are for 2WD model unless we specify 4WD.

WARRANTY :

Shock absorbers, compressor, air bag has one year limited warranty.

We authorize a well-known brand’s OEM factory to manufacture the electric control box and remote control. It has been through testing around 6 months, we are confident with the quality, but if there is any break-down the parts, customer must send back to Taiwan for repairing. (It’s a common warranty for all electric products). After inspecting, if the break down is caused by flooded or throwing down heavily, it won’t be under warranty.

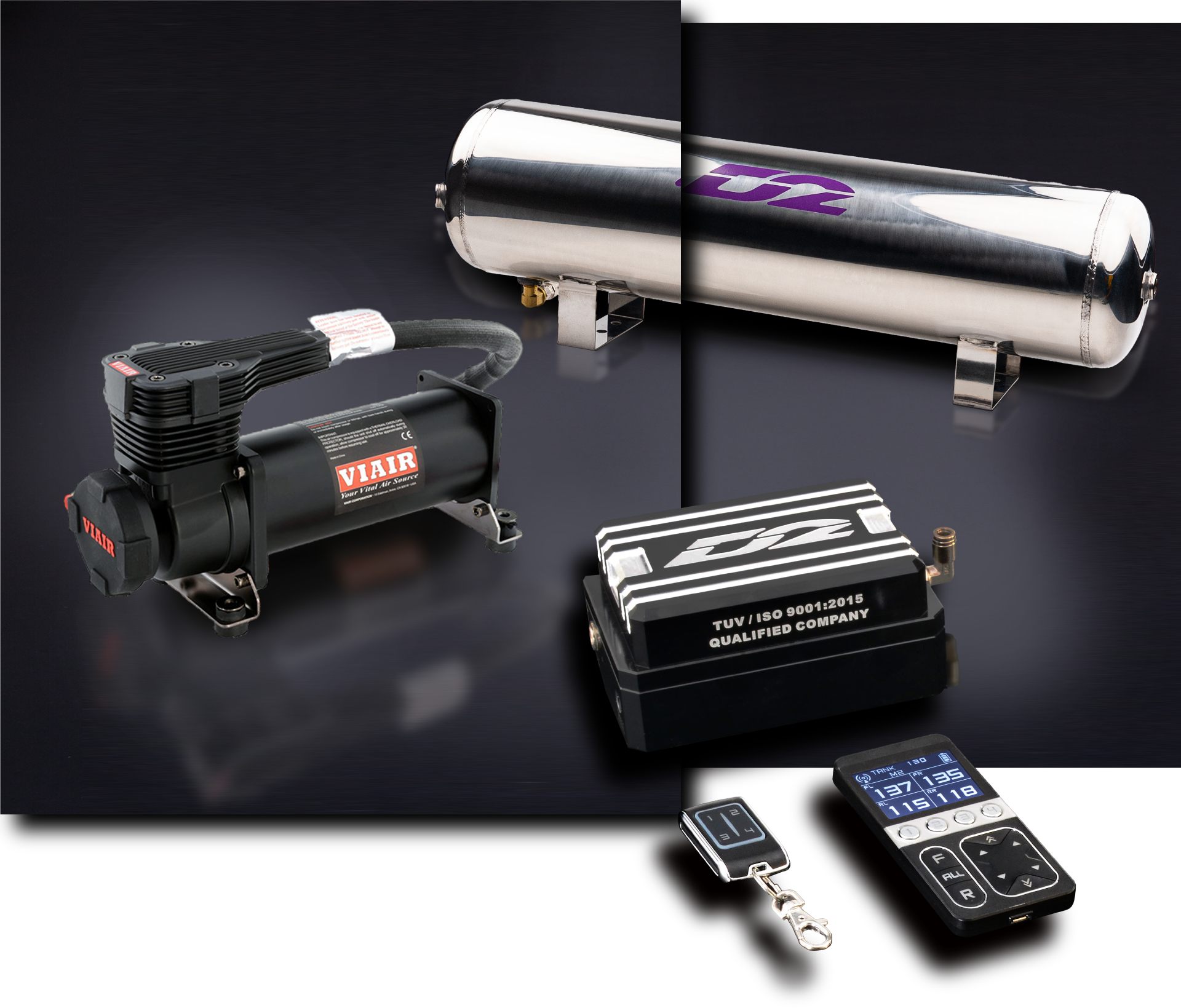

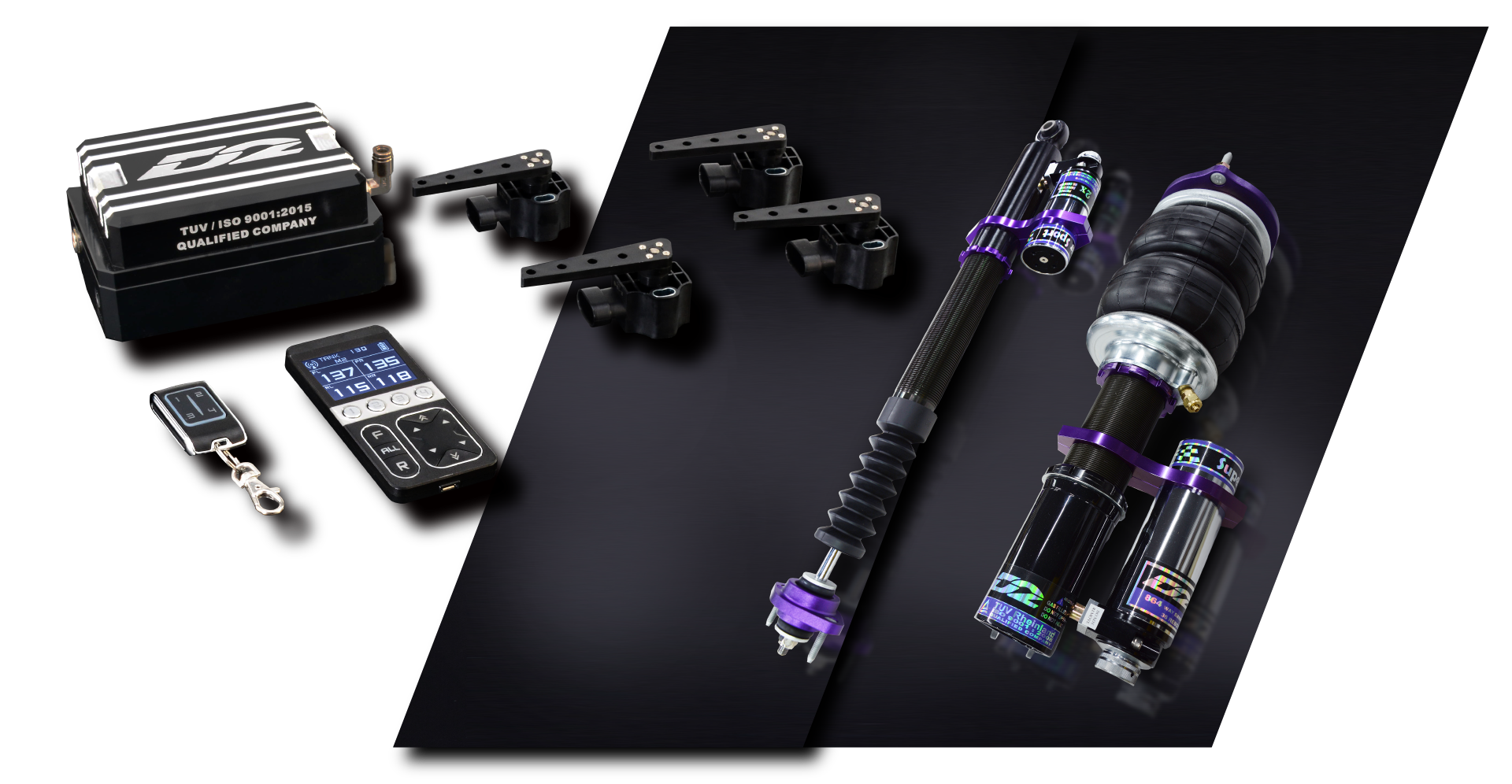

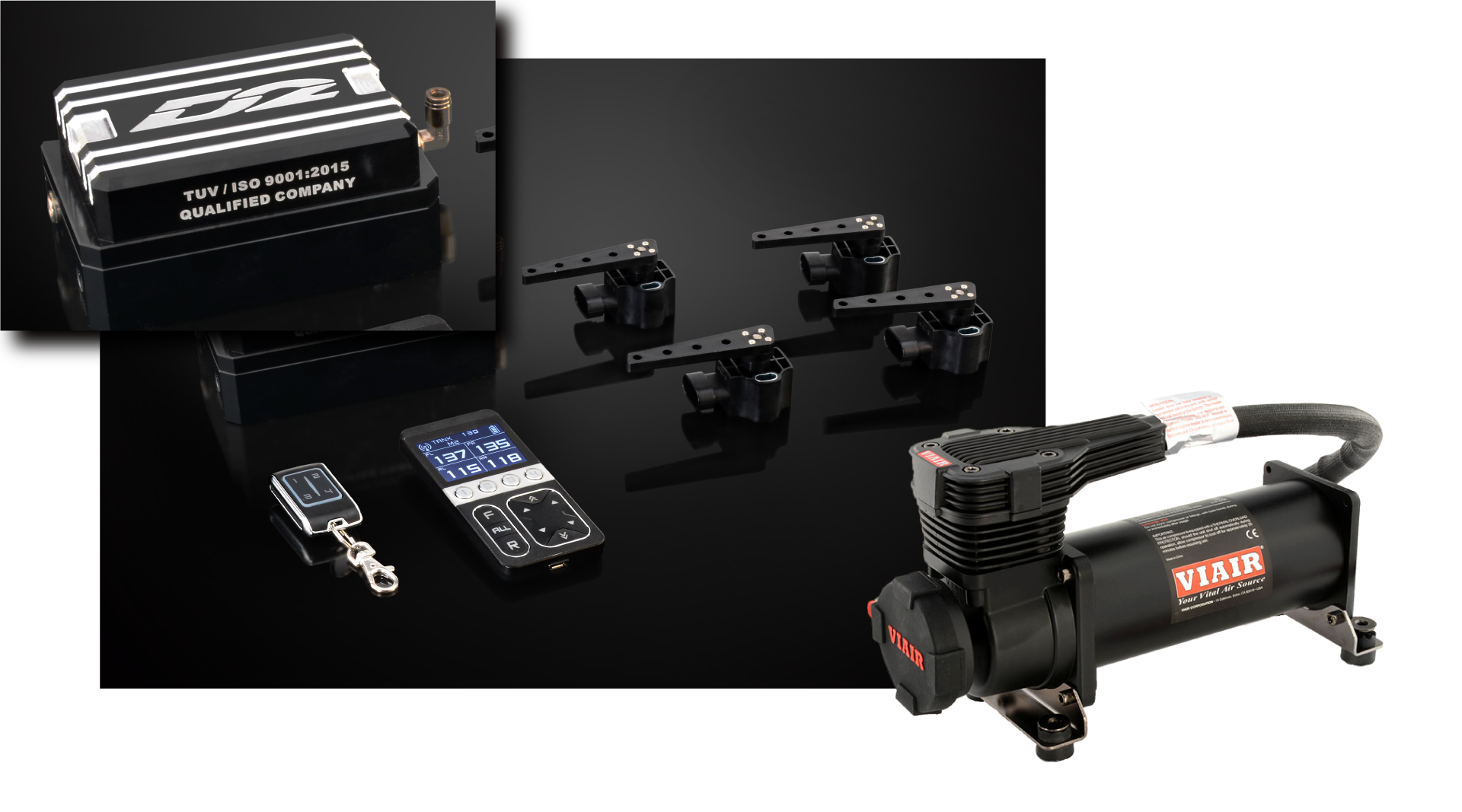

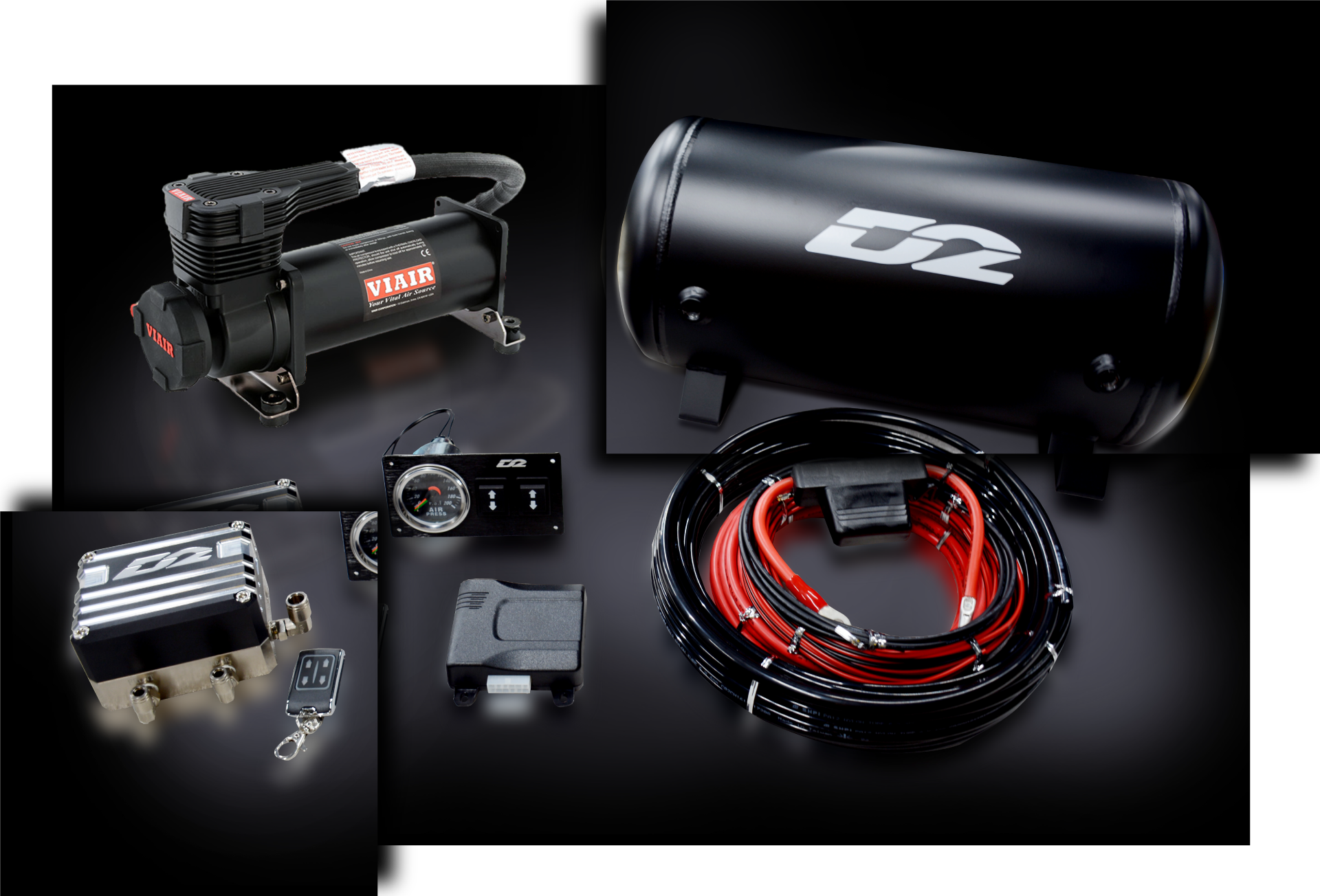

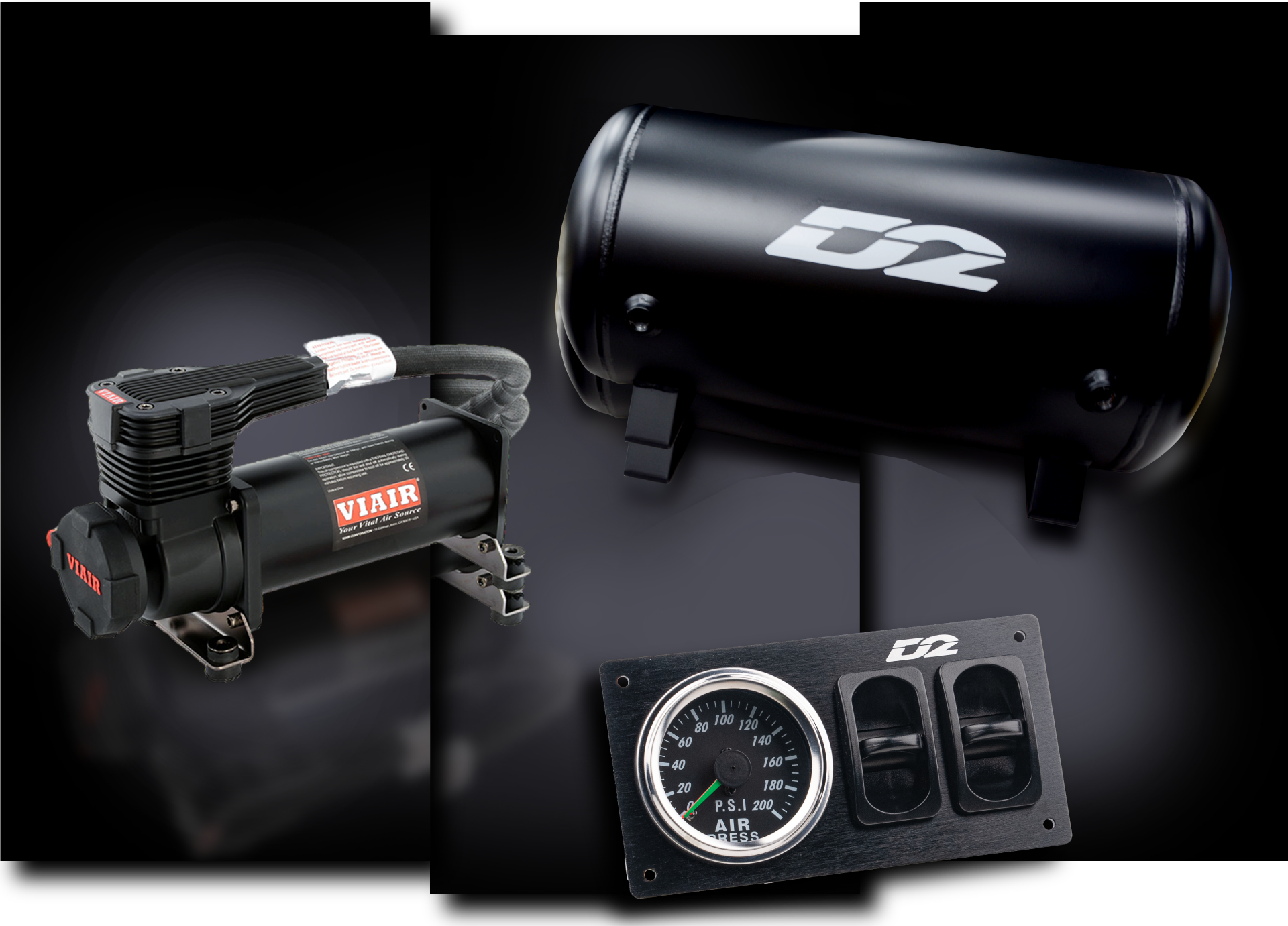

THIS SYSTEM INCLUDES :
